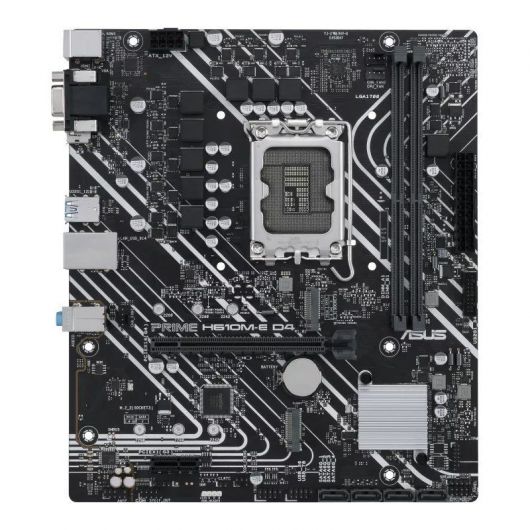

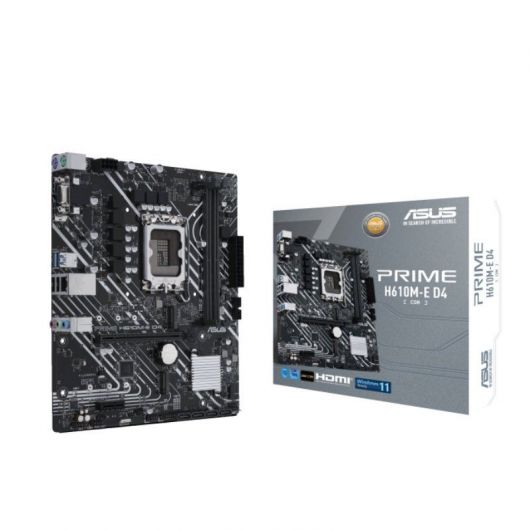

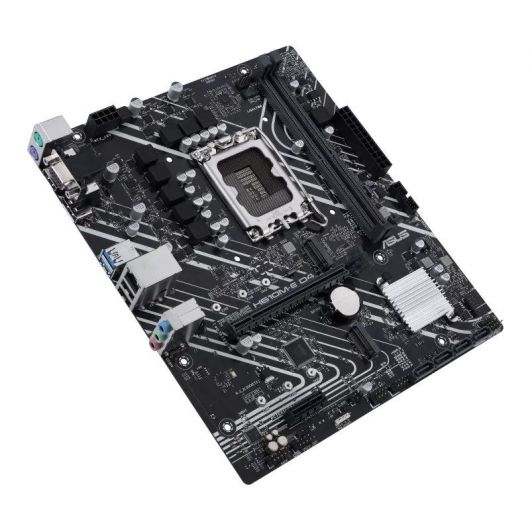

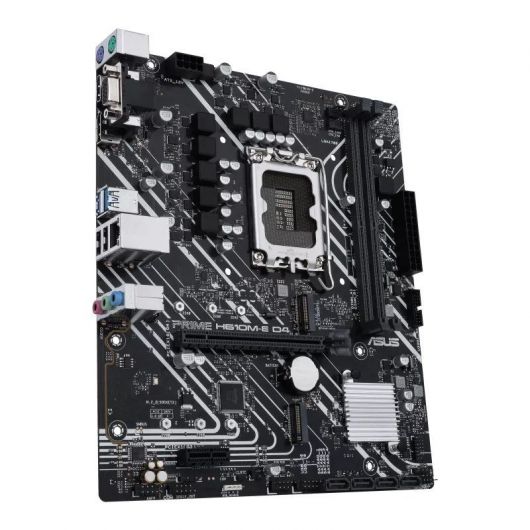

Placa Base Asus Prime H610M-E D4-CSM/ Socket 1700/ Micro ATX

Fabricante: Asus

Modelo: 90MB19N0-M0EAYC

Recursos de seguridad y productos

• CPU

• Intel Socket LGA1700 for 12th Gen Intel Core, Pentium Gold and Celeron Processors*
• Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**
• * Refer to www.asus.com for CPU support list.
• ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.

• Chipset

• Intel H610 Chipset

• Memoria

• 2 x DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
• Dual Channel Memory Architecture
• Supports Intel Extreme Memory Profile (XMP)
• * Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

• Gráficos

• 1 x DisplayPort**
• 1 x D-Sub port
• 1 x HDMI port***
• * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
• ** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
• *** Supports 4K@60Hz as specified in HDMI 2.1.

• Expansion Slots

• Intel 12th Gen Processors
• 1 x PCIe 4.0 x16 slot
• Intel H610 Chipset
• 1 x PCIe 3.0 x1 slot

• Almacenamiento

• Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
• Intel H610 Chipset
• M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)
• M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x2 mode)
• 4 x SATA 6Gb/s ports

• Ethernet

• 1 x Realtek 1Gb Ethernet

• USB

• Rear USB (Total 4 ports)
• 2 x USB 3.2 Gen 1 ports (2 x Type-A)
• 2 x USB 2.0 ports (2 x Type-A)
• Front USB (Total 6 ports)
• 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support additional 4 USB 2.0 ports

• Audio

• Realtek 7.1 Surround Sound High Definition Audio CODEC*
• – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• – Supports up to 24-Bit/192 kHz playback
• Audio Features
• – Audio Shielding
• – Premium audio capacitors
• – Dedicated audio PCB layers
• * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

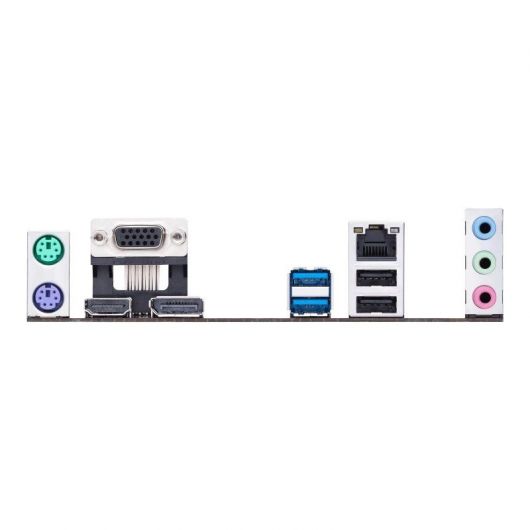

• Panel trasero I/O Ports

• 2 x USB 3.2 Gen 1 ports (2 x Type-A)
• 2 x USB 2.0 ports (2 x Type-A)
• 1 x DisplayPort
• 1 x D-Sub port
• 1 x HDMI port
• 1 x Realtek 1Gb Ethernet port
• 3 x Audio jacks
• 1 x PS/2 Keyboard (purple) port
• 1 x PS/2 Mouse (green) port

• Conectores internos I/O

• Fan and Cooling related
• 1 x 4-pin CPU Fan header
• 2 x 4-pin Chassis Fan headers
• Power related
• 1 x 24-pin Main Power connector
• 1 x 8-pin +12V Power connector
• Storage related
• 2 x M.2 slots (Key M)
• 4 x SATA 6Gb/s ports

• USB

• 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support additional 4 USB 2.0 ports
• Miscellaneous
• 1 x RGB header
• 1 x Clear CMOS header
• 1 x Front Panel Audio header (AAFP)
• 1 x COM Port header
• 1 x S/PDIF Out header
• 1 x Speaker header
• 1 x SPI TPM header (14-1pin)
• 1 x 10-1 pin System Panel header

• Special Features

• ASUS 5X PROTECTION III
• – DIGI+ VRM
• – LANGuard
• – Overvoltage Protection
• – SafeSlot Core
• – Stainless-Steel Back I/O
• ASUS Q-Design
• – Q-DIMM
• – Q-Slot
• ASUS Thermal Solution
• – Aluminum heatsink design
• ASUS Lighting Control
• – RGB header

• Software Features

• ASUS Exclusive Software
• Armoury Crate
• AI Suite 3
• – Performance And Power Saving Utility
• TurboV EVO
• EPU
• DIGI+ VRM
• Fan Xpert 2+
• ASUS CPU-Z
• IT Management software supported
• – ASUS Control Center Express(ACCE)
• Norton Anti-virus software (Free Trial version)
• WinRAR
• UEFI BIOS
• ASUS EZ DIY
• – ASUS CrashFree BIOS 3
• – ASUS EZ Flash 3
• – ASUS UEFI BIOS EZ Mode

• BIOS

• 128 Mb Flash ROM, UEFI AMI BIOS

• Manejabilidad

• WOL by PME, PXE

• Accesorios

• Cables
• 2 x SATA 6Gb/s cables
• Miscellaneous
• 1 x I/O Shield
• 1 x M.2 SSD screw package
• Installation Media
• 1 x Support DVD
• Documentation
• 1 x ACC Express Activation Key Card
• 1 x User guide

• Sistema operativo

• Windows 11 64-bit, Windows 10 64-bit

• Factor de forma

• mATX Form Factor
• 9.6 inch x 8.3 inch (24.4 cm x 21.1 cm)
